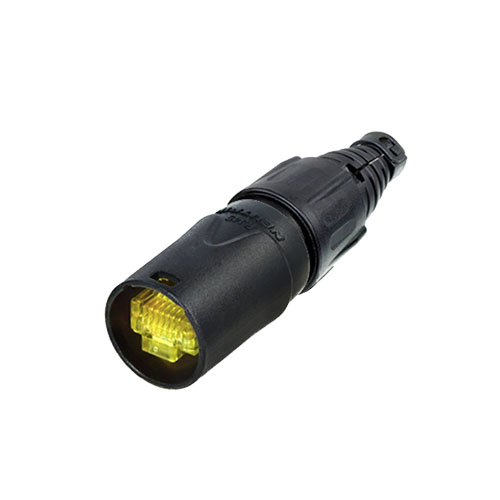

The cable connector protection for pre-assembled RJ45 cable connectors consists of a black chrome-plated housing, stop washer, collet chuck, clamping sleeve and kink protection. It is supplied with two kink protection elements for cable diameters up to 5 mm or 8 mm. An RJ45 cable connector is not included in the scope of delivery.
The etherCON cable connector protection upgrades a conventional RJ45 connector to an extremely robust and lockable solution.
Attention! Not compatible with the CAT6 panel jacks NE8FDY-C6 and NE8FDY-C6-B.
- Rugged RJ45 Connector System for harsh Environments
- All common RJ45 Cable Connectors can be Mounted (see List under Downloads)
- Robust die-cast Housing and proven Collets Strain Relief
- Prevents the fragile locking lever of the Standard RJ45 Cable Connector from breaking off
- Assembling of pre-assembled RJ45 Cables
- Accessories include 9 different coloured bend Protection Sleeves
| Type de produit |
Connecteurs |
| Sexe |
mâle |
| Diamètre câble |
niveau maximal 8 mm |
| Température d'utilisation |
-30 / +80 |
| Boîtier |
Fonte de zinc |
| Poids |
0,03 kg |
