ADJ VS3IP dalle led vidéo extérieur 576 x 576 pitch 3.84

SPECIFICATIONS:

Source
• Light Source: RGB SMD1921 LED
• Pixel Density: 150x150 per panel; 67816 per square meter
• Operating Life / MTBF: 50,000 Hours / 5,000 Hours
• Pixel Pitch: 3.84mm
• Gaps<0.5mm

Optics
• Brightness: 4500 NITS
• View Angle: Horizontal 160°/Vertical 140° @ 3m
• Gray Scale: ≥14-bit
• Brightness Adjustment: 0~100% 100 Levels
• Contrast ratio: 5000:1
• Display Color: 256
• Processing: 14-bit

Control
• Control Mode: Novastar Synchronous System
• Refresh Rate: 3840Hz
• Control Distance: Ethernet Cable <120m
• Optional Novastar Sending Cards and Accessories available
• Frame Update Frequency: 50-75Hz
• Brightness Correction: Pixel, Module, Cabinet

Colors
• RGB

Construction

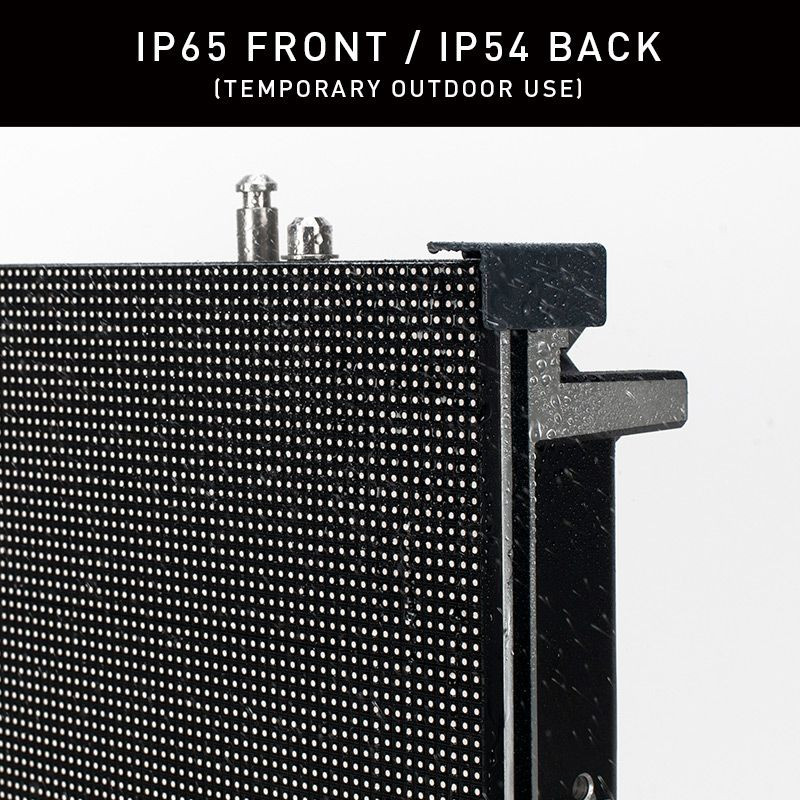

• Protection Level: IP65 Front / IP54 Back
• Aluminium Frame with built-in corner protectors
• Module Quantity: 4
• IP65 Front / IP54 Back (Temporary outdoor use)

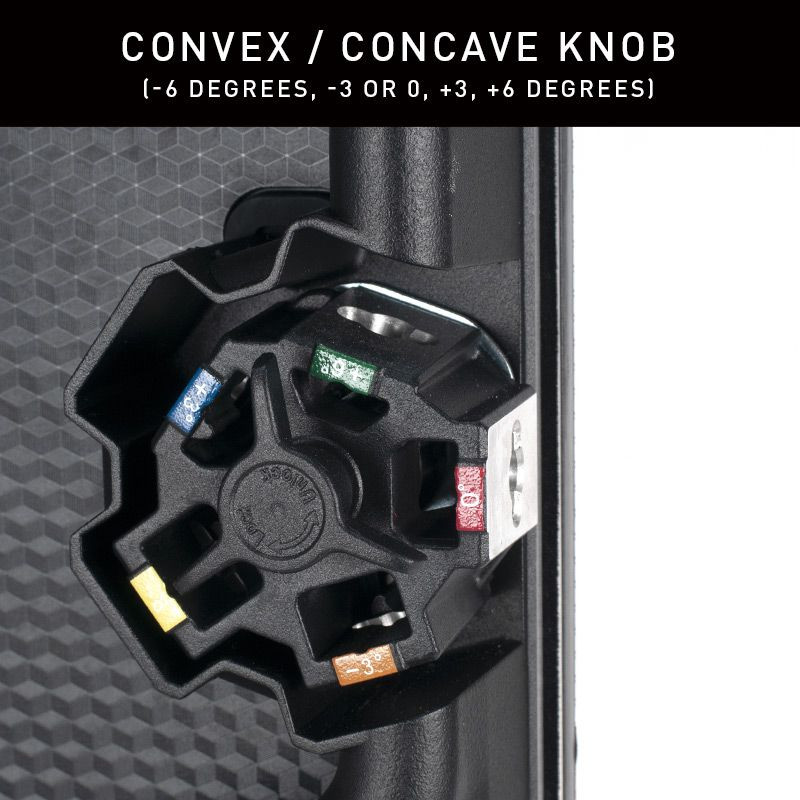

• Curve panels in convex or concave -6, -3 degrees or 0,
  +3, +6 degrees
• Quick lock system to connect panels together
• Quick release power supply / receiving card module

Electrical
• Multivoltage 100-240V 50/60Hz
• Max. Power Consumption: 210W/per panel
• Ave. Power Consumption: 84W/per panel
• Operational temperature: -20 to +40 degrees
• Operational humidity: 10% — 90% (no condensation)

Connections

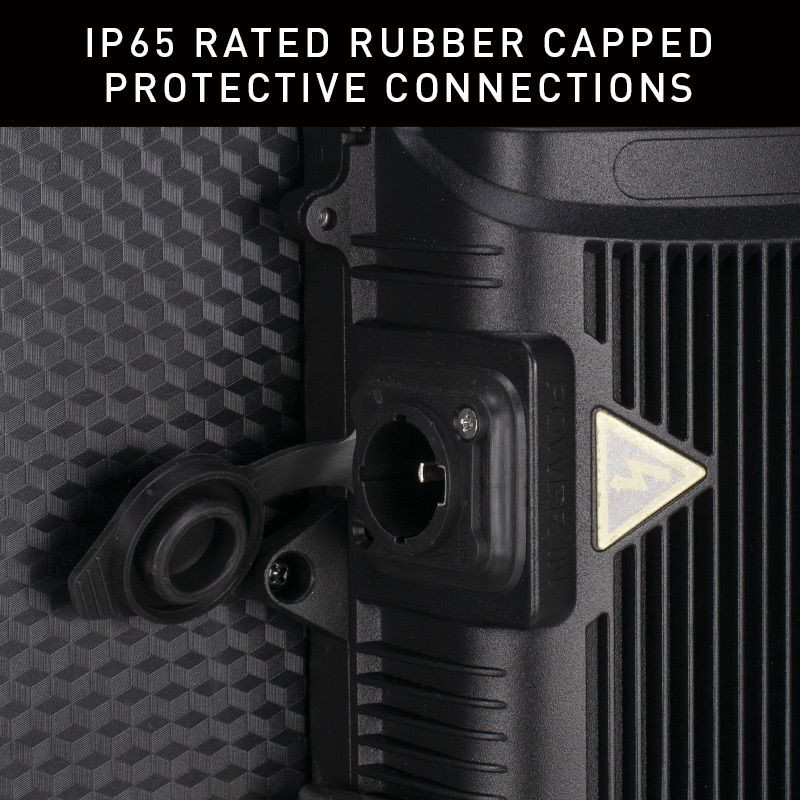

• Locking IP65 RJ45 In/Out connections

• Locking IP65 Power In/Out connections

Dimensions & Weight
• Dimensions (LxWxH): 576 x 76.8 x 576 mm
• Weight: 9kg.

What’s included
• Locking IP65 RJ45 Cabinet to Cabinet Data Link Cables
• Locking IP65 Power Link Cables
