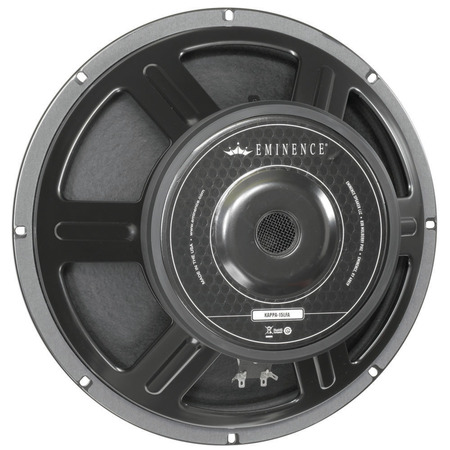

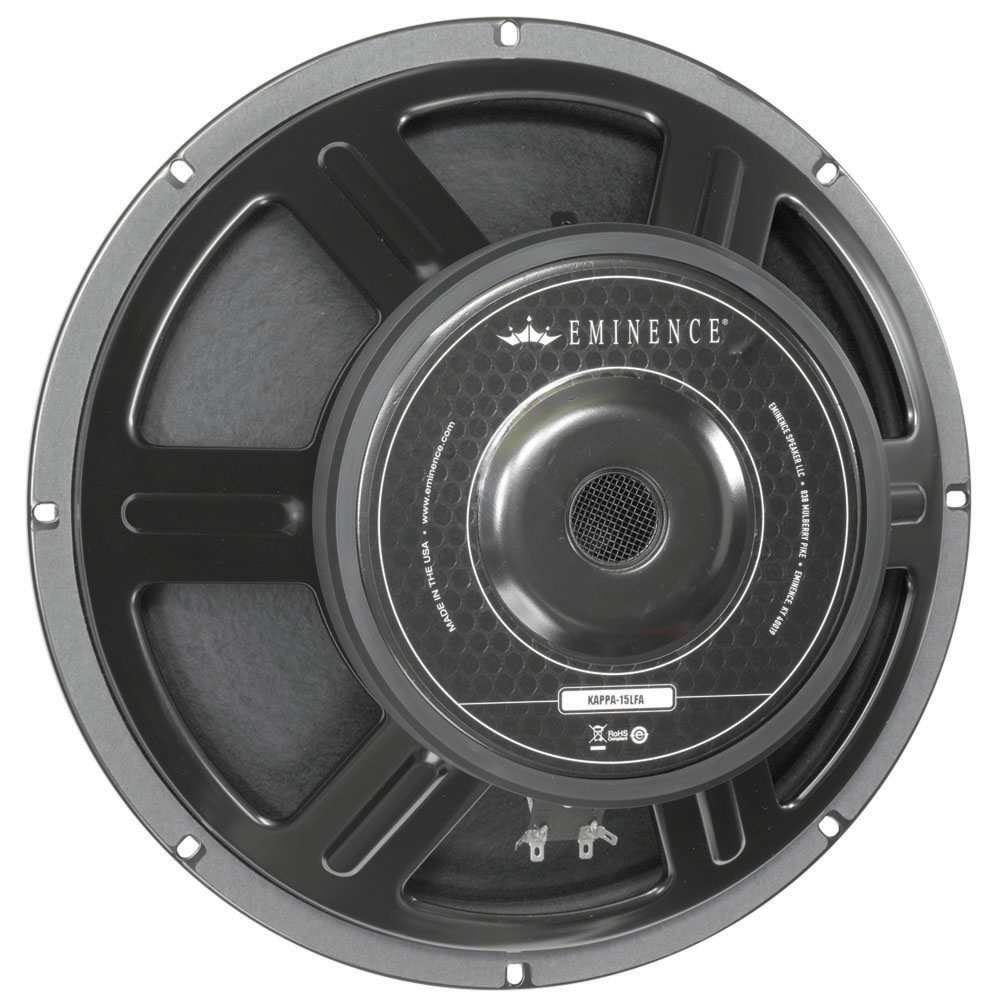

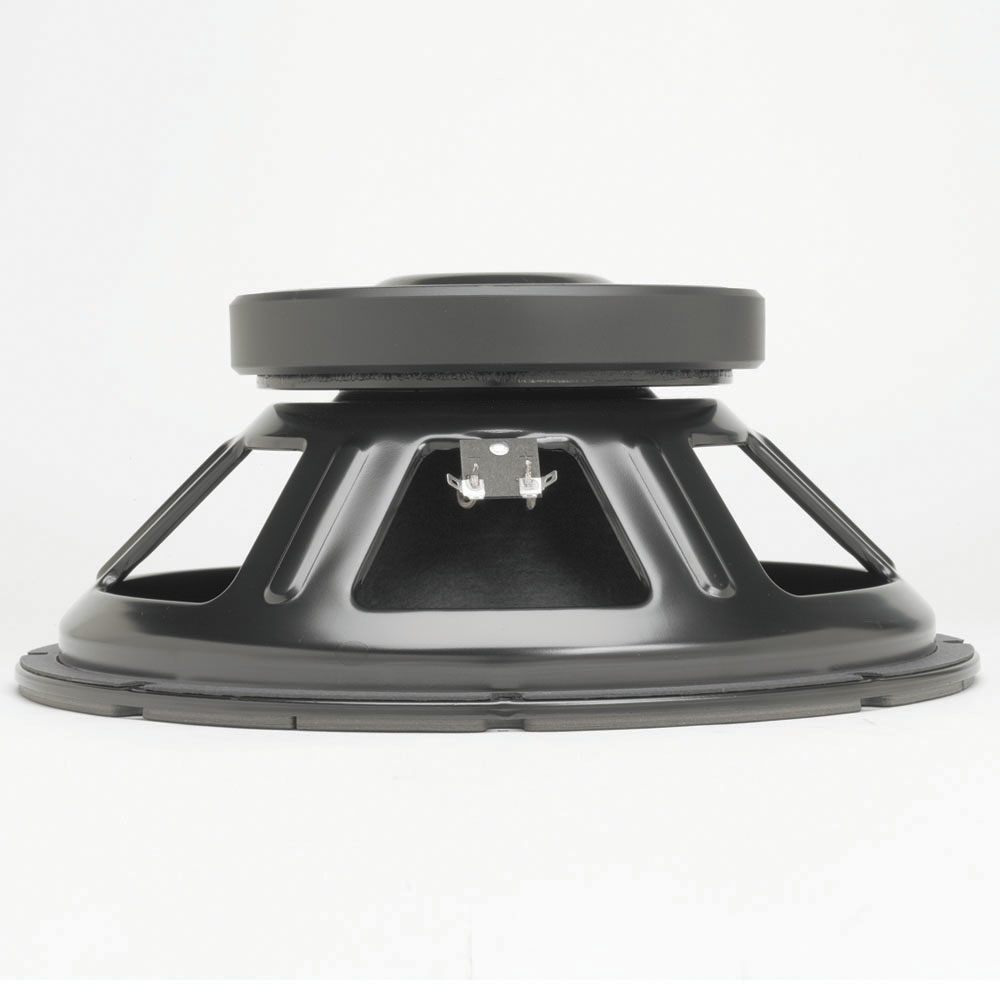

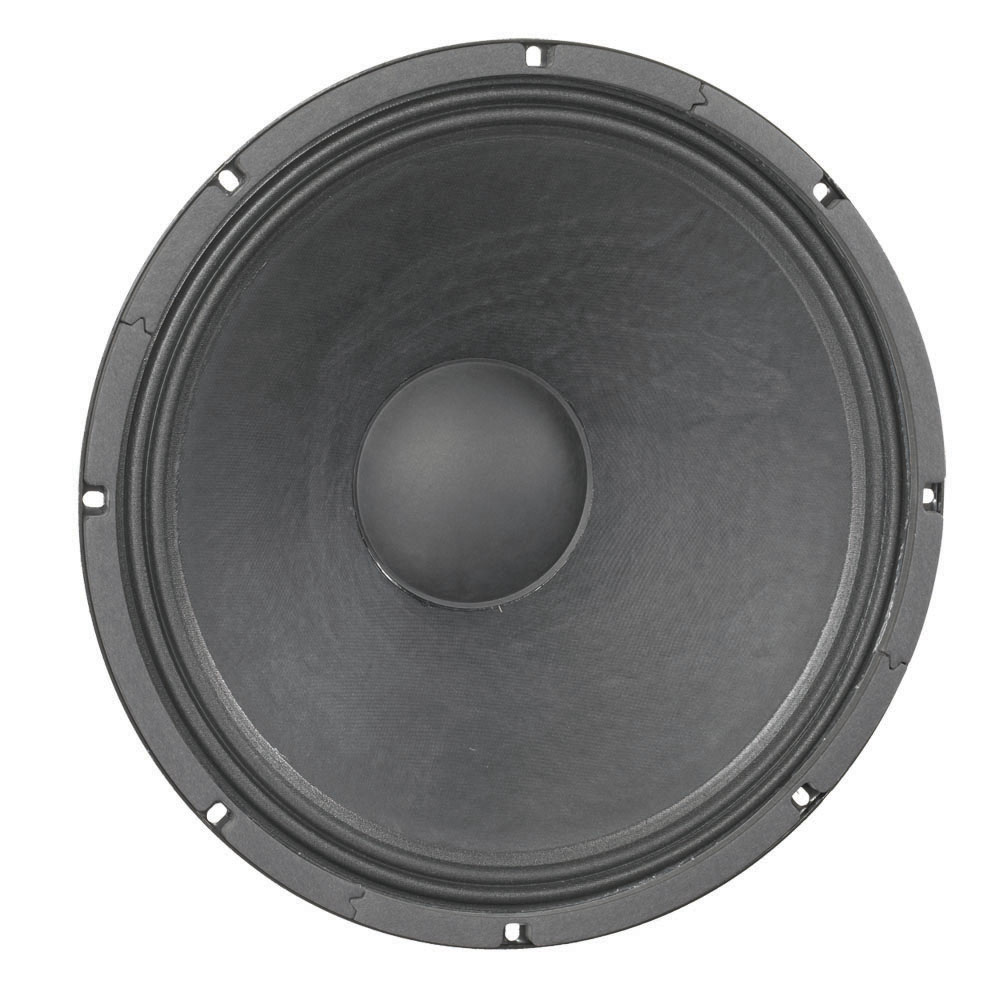

Eminence Kappa - Haut-parleur 15 Pouces 600 W 8 Ohms

Série KAPPA-15LFA American Standard

Recommandé pour applications audio professionnelles, enceinte graves/médium ou graves bass reflex. Convient aussi pour ampli basse.

SPECIFICATION

Nominal Basket Diameter 15", 381 mm
Nominal Impedance 8 ohms
Power Rating Watts 600 W / Music Program 1200 W
Resonance 39 Hz
Usable Frequency Range 38 Hz - 2.7 kHz
Sensitivity 99
Magnet Weight 95 oz.
Gap Height 0.375", 9.53 mm
Voice Coil Diameter 3", 76.2 mm


THIELE & Small Parameters

Resonant Frequency (fs) 39 Hz
DC Resistance (Re) 5.4
Coil Inductance (Le) 1.27 mH
Mechanical Q (Qms) 6.08
Electromagnetic Q (Qes) 0.41
Total Q (Qts) 0.38
Compliance Equivalent Volume (Vas) 159.0 liters / 5.6 cu. ft.
Peak Diaphragm Displacement Volume (Vd) 471 cc
Mechanical Compliance of Suspension (Cms) 0.15 mm/N
BL Product (BL) 18.6 T-M
Diaphragm Mass inc. Airload (Mms) 105 grams
Efficiency Bandwidth Product (EBP) 95
Maximum Linear Excursion (Xmax) 5.5 mm
Surface Area of Cone (Sd) 856.3 cm²
Maximum Mechanical Limit (Xlim) 10.4 mm


MOUNTING Information

Recommended Enclosure Volume
Sealed N/A
Vented 62-193 liters/2.2-6.8 cu.ft.
Overall Diameter 15.16", 384.9 mm
Baffle Hole Diameter 13.77", 349.6 mm
Front Sealing Gasket fitted as standard
Rear Sealing Gasket fitted as standard
Mounting Holes Diameter 0.25", 6.4 mm
Mounting Holes B.C.D. 14.56", 369.9 mm
Depth 6.38", 162 mm


MATERIALS of Construction

Copper voice coil
Polyimide former
Ferrite magnet
Vented core
Pressed steel basket
Paper Cone
Cloth cone edge
Solid composition paper dust cap
