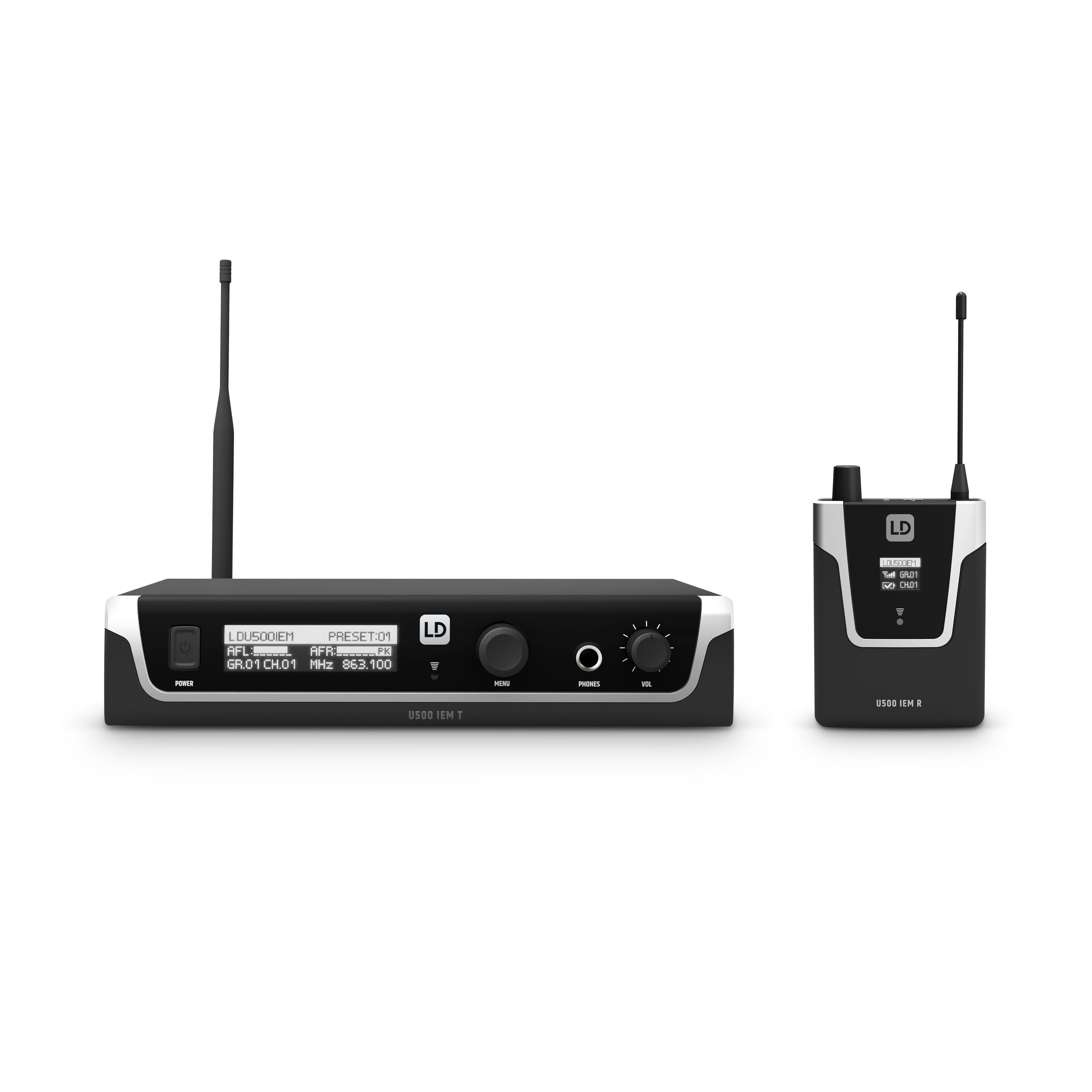

LD Systems U505 IEM - In-Ear Monitoring System

Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.

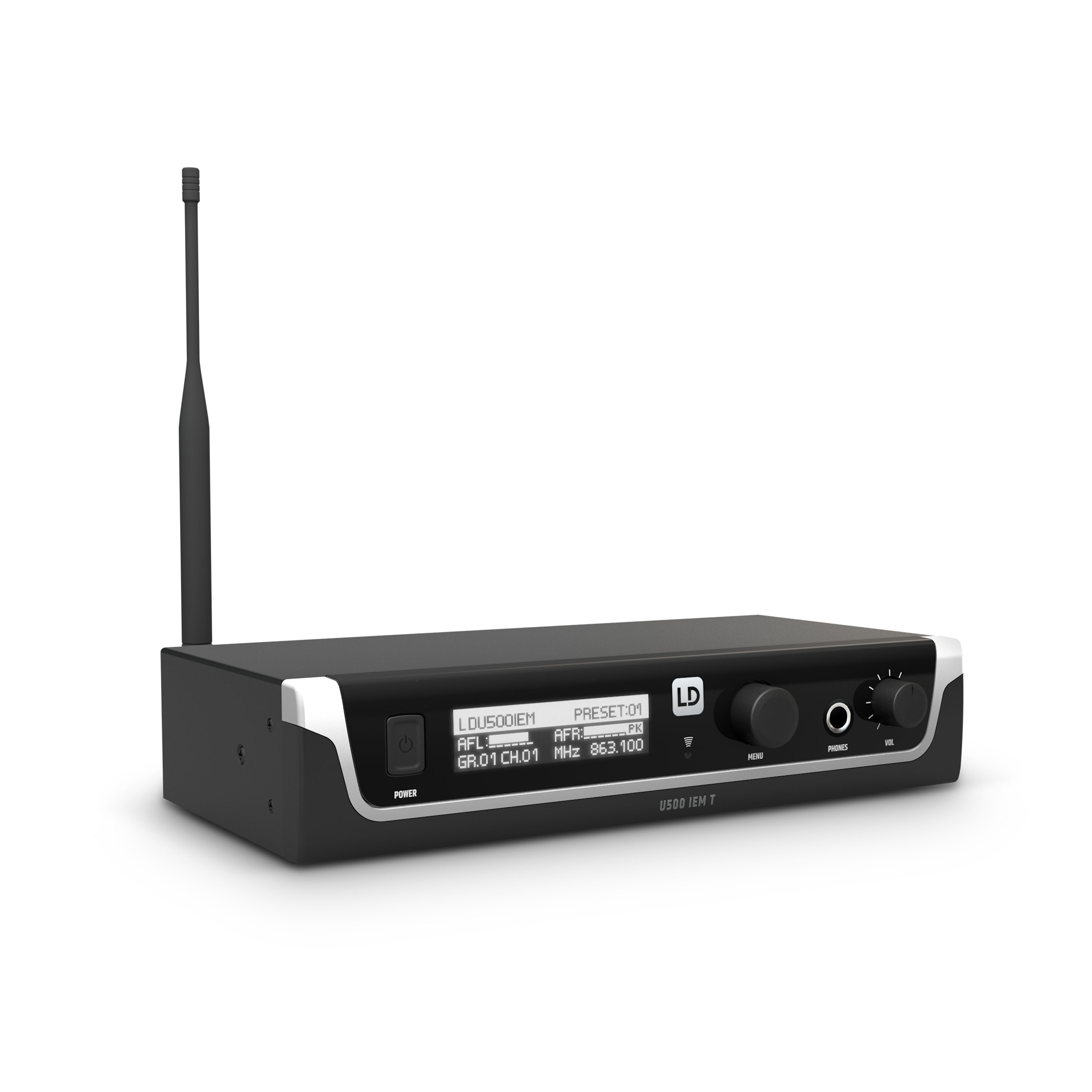

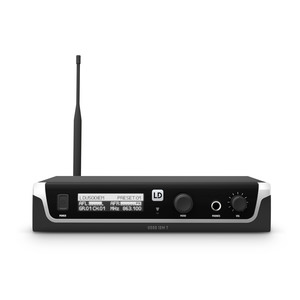

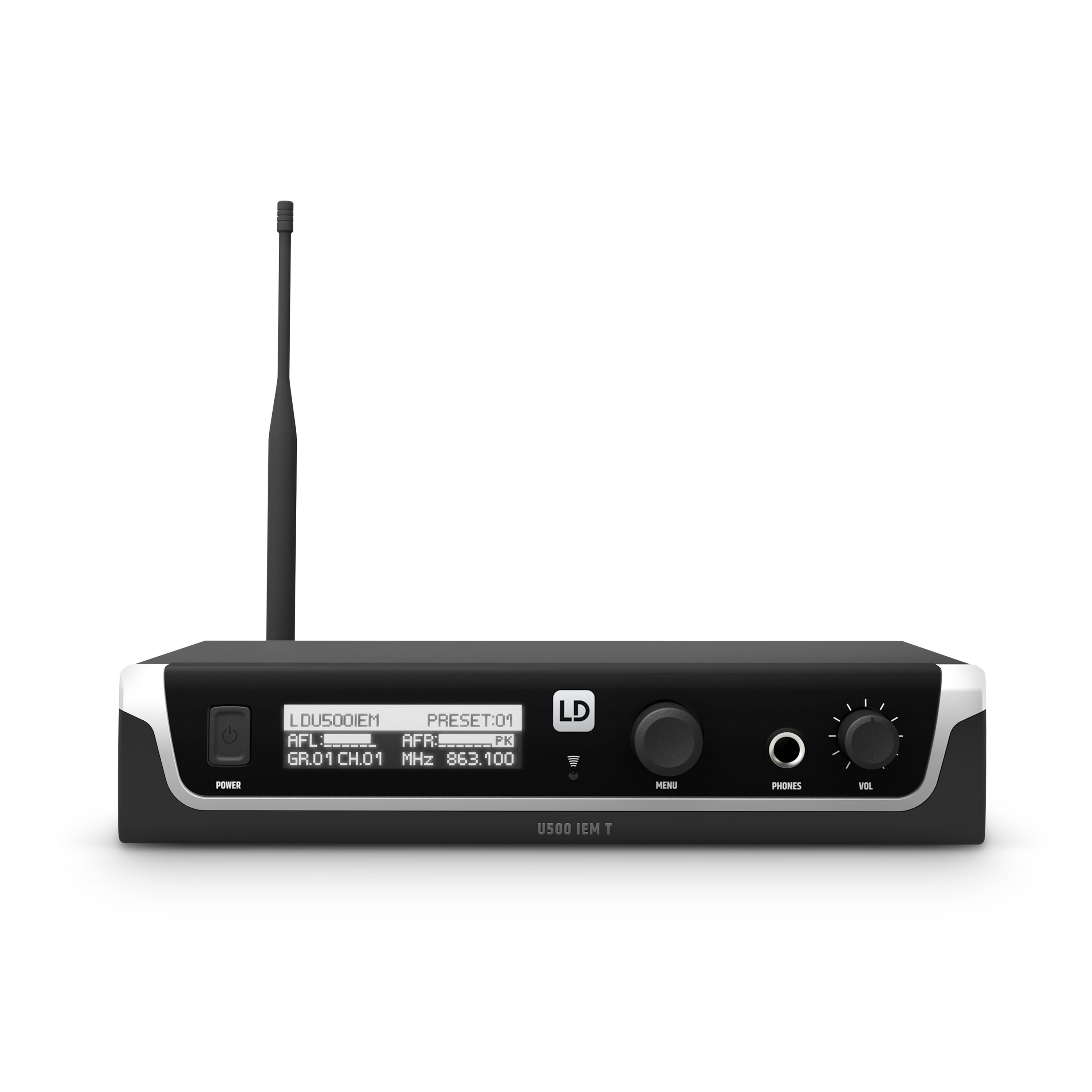

U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.

To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.

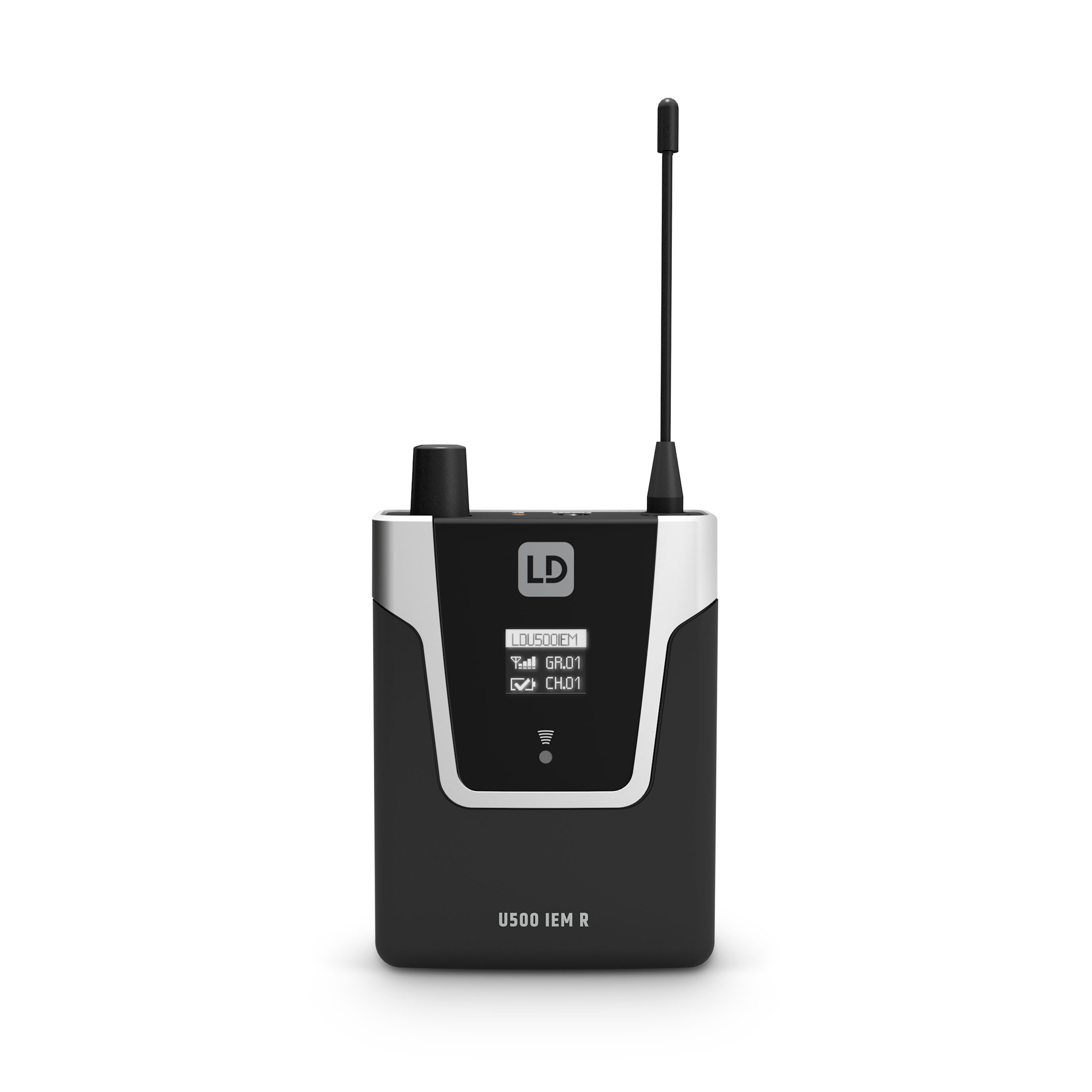

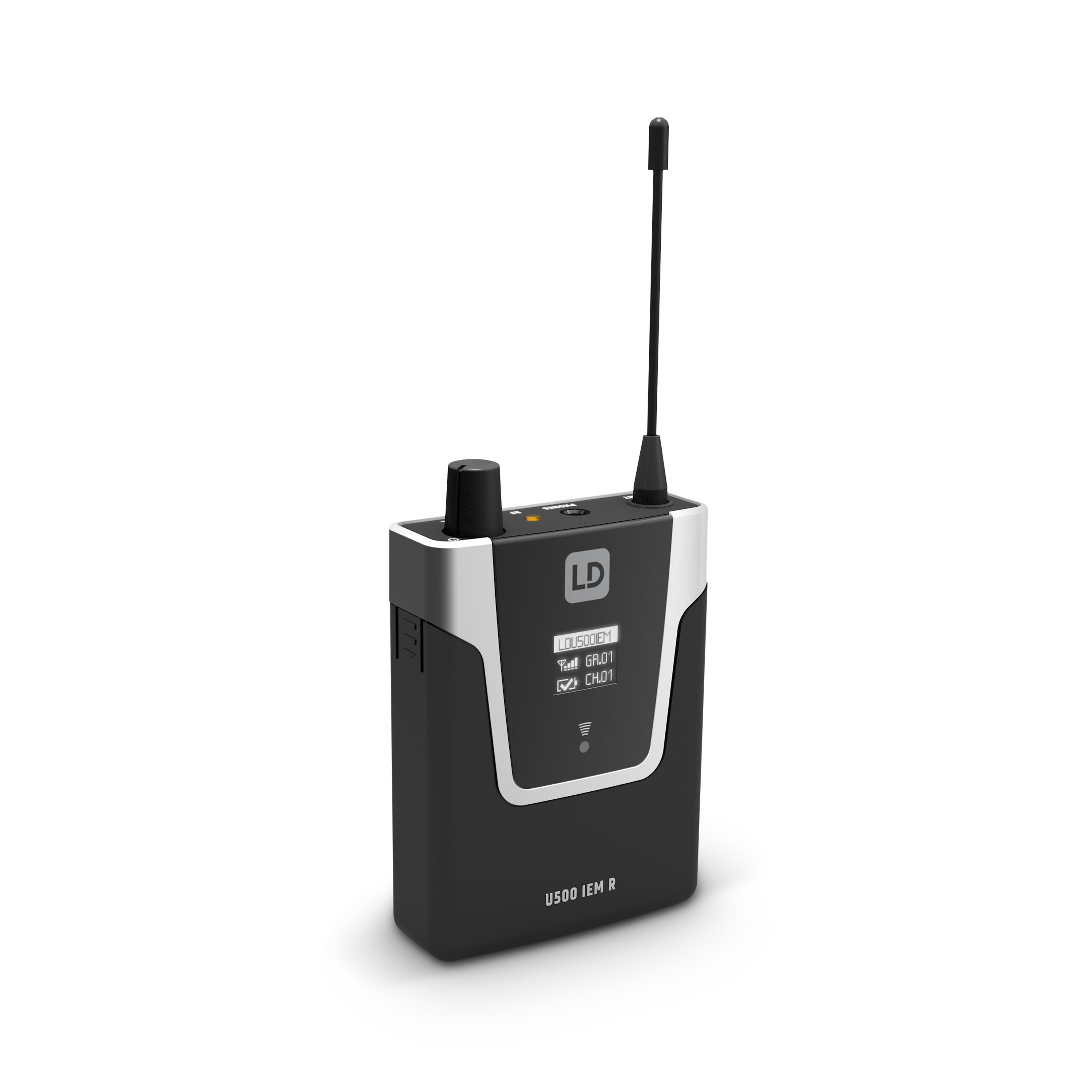

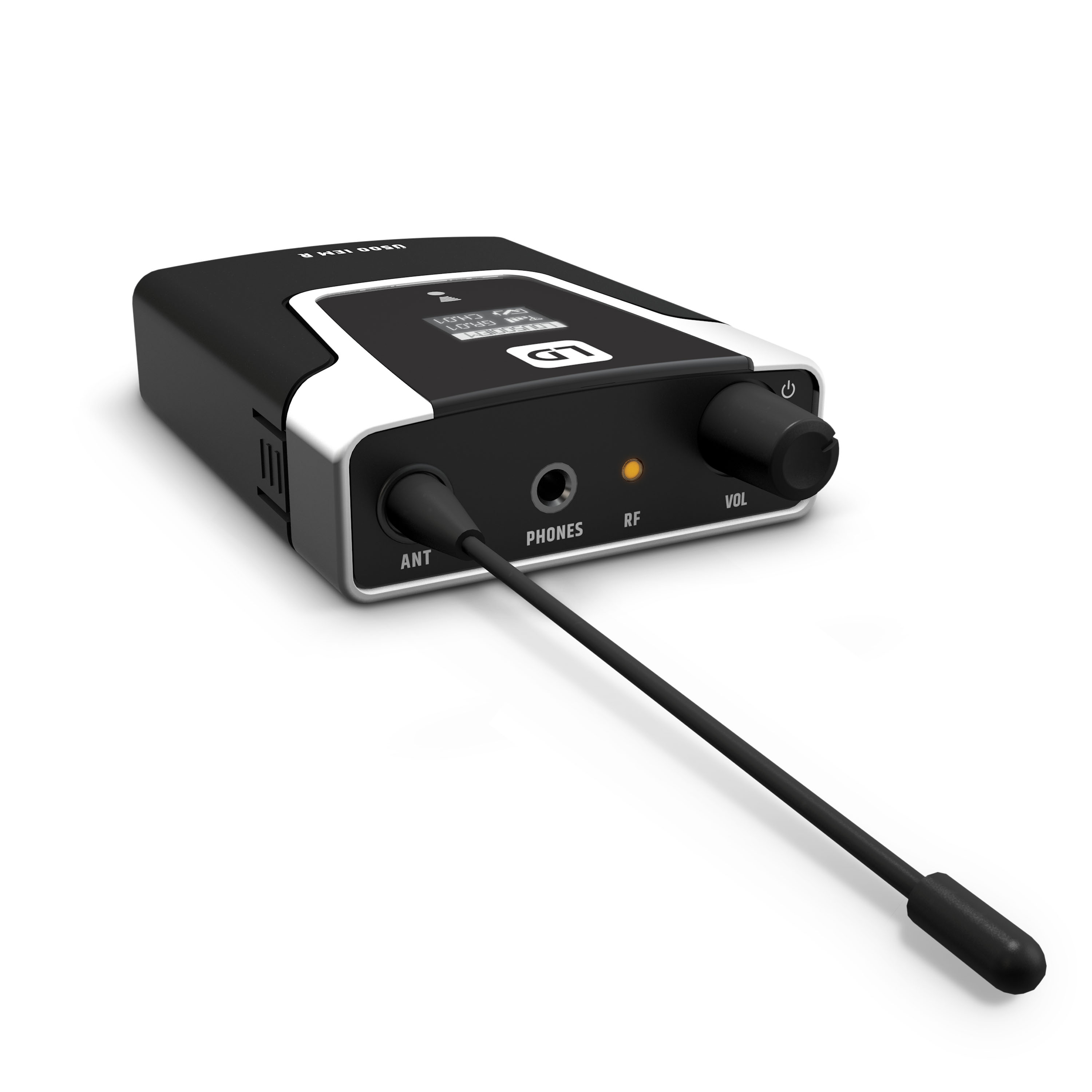

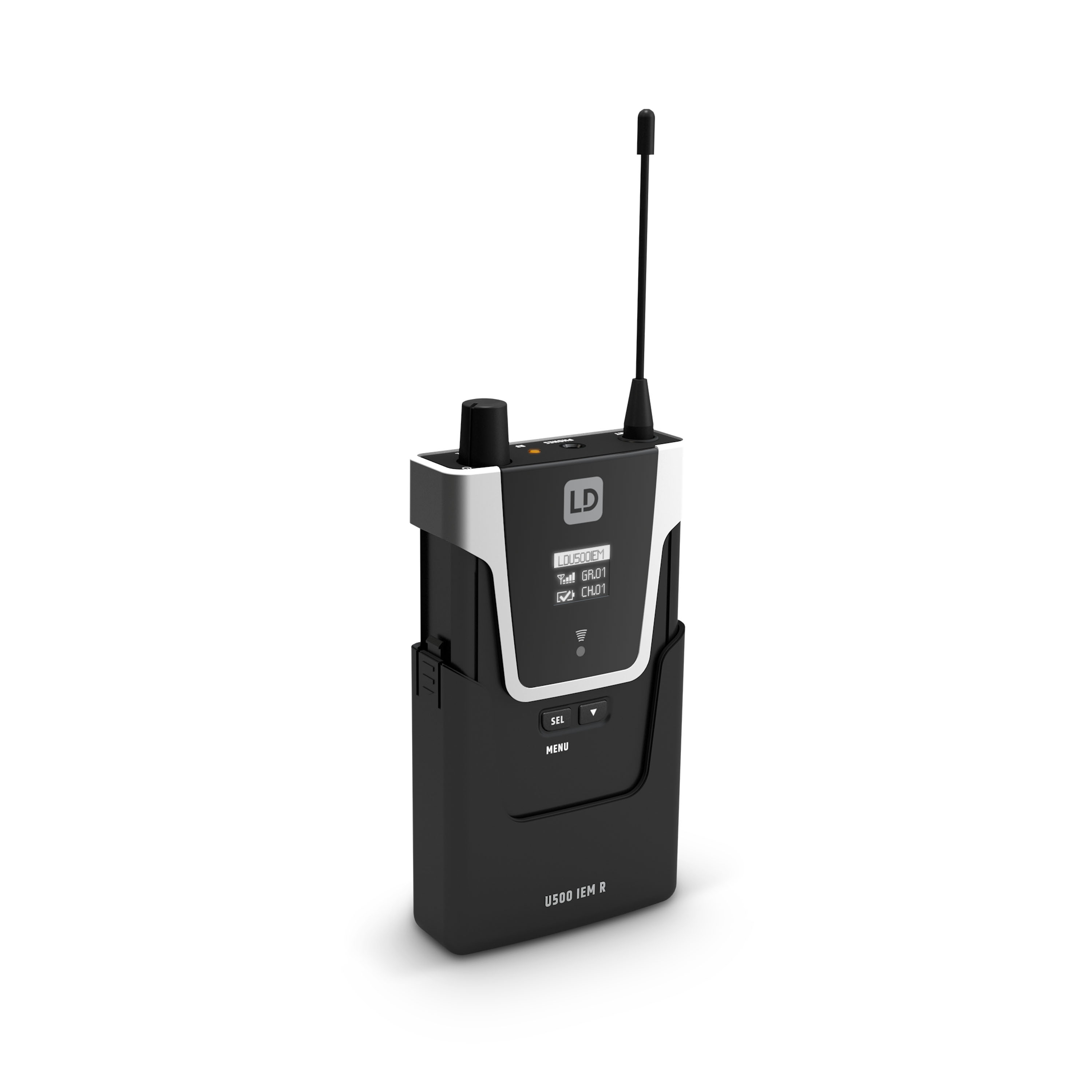

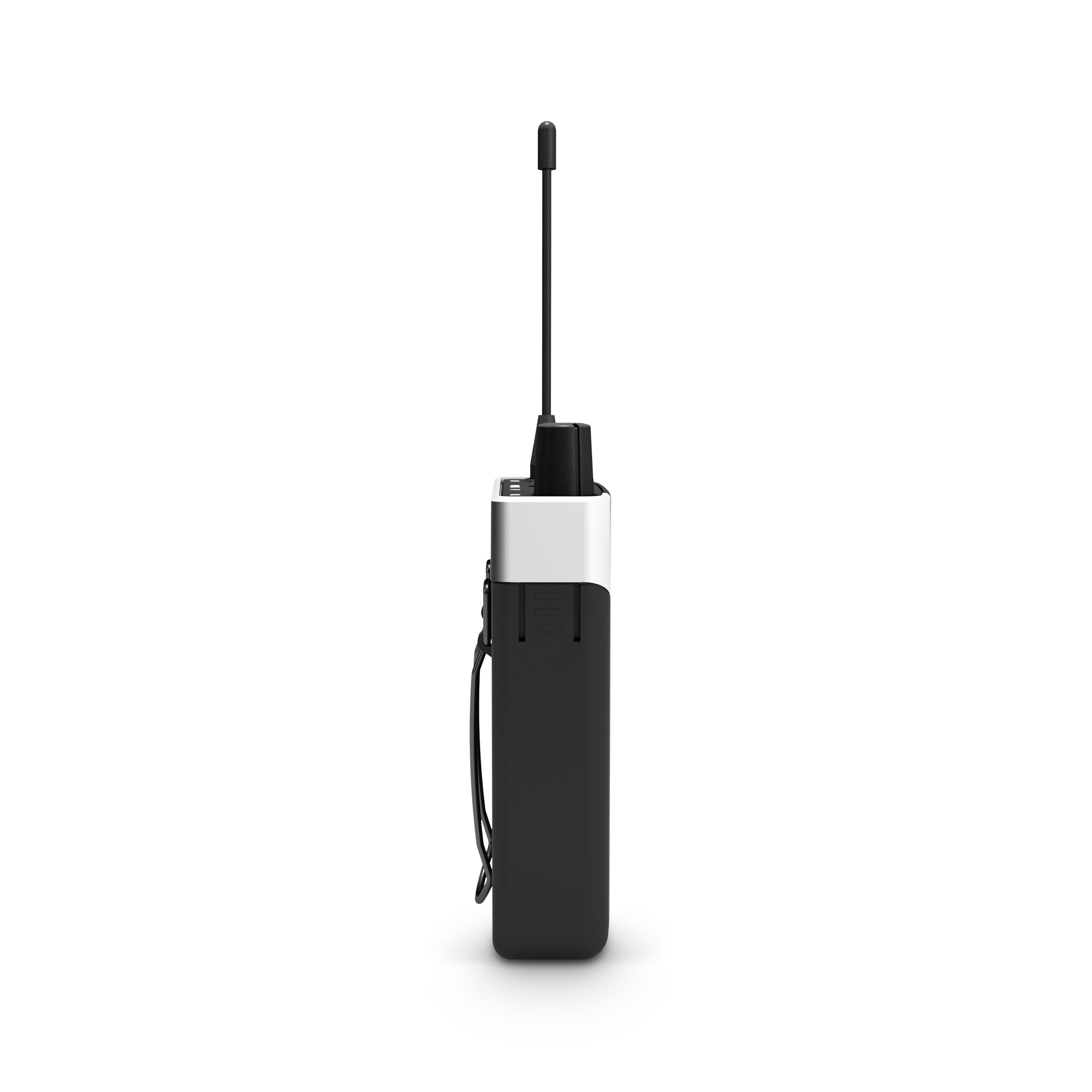

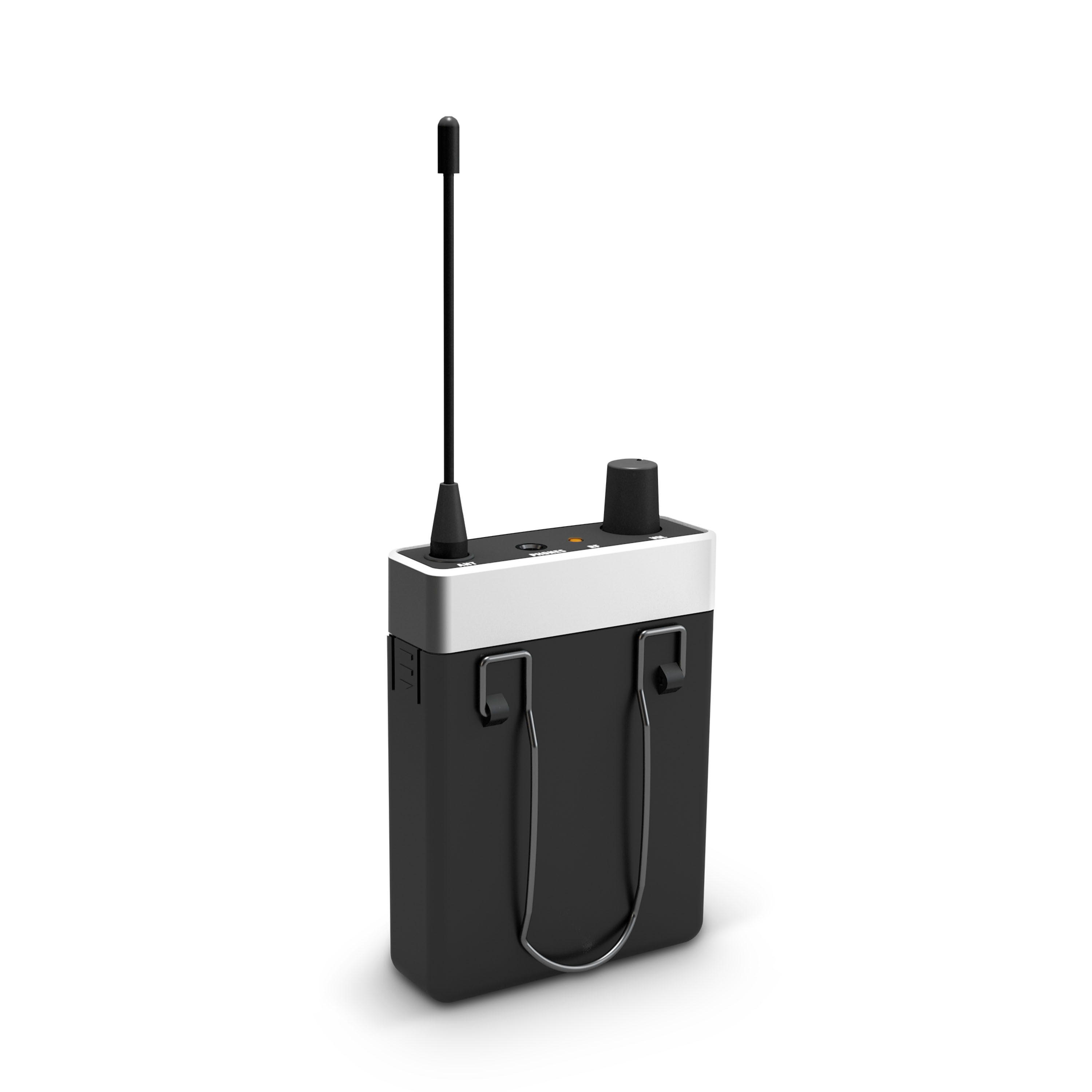

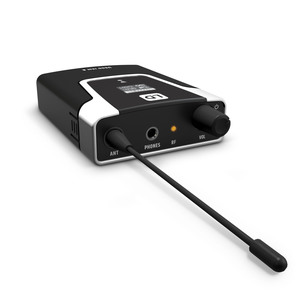

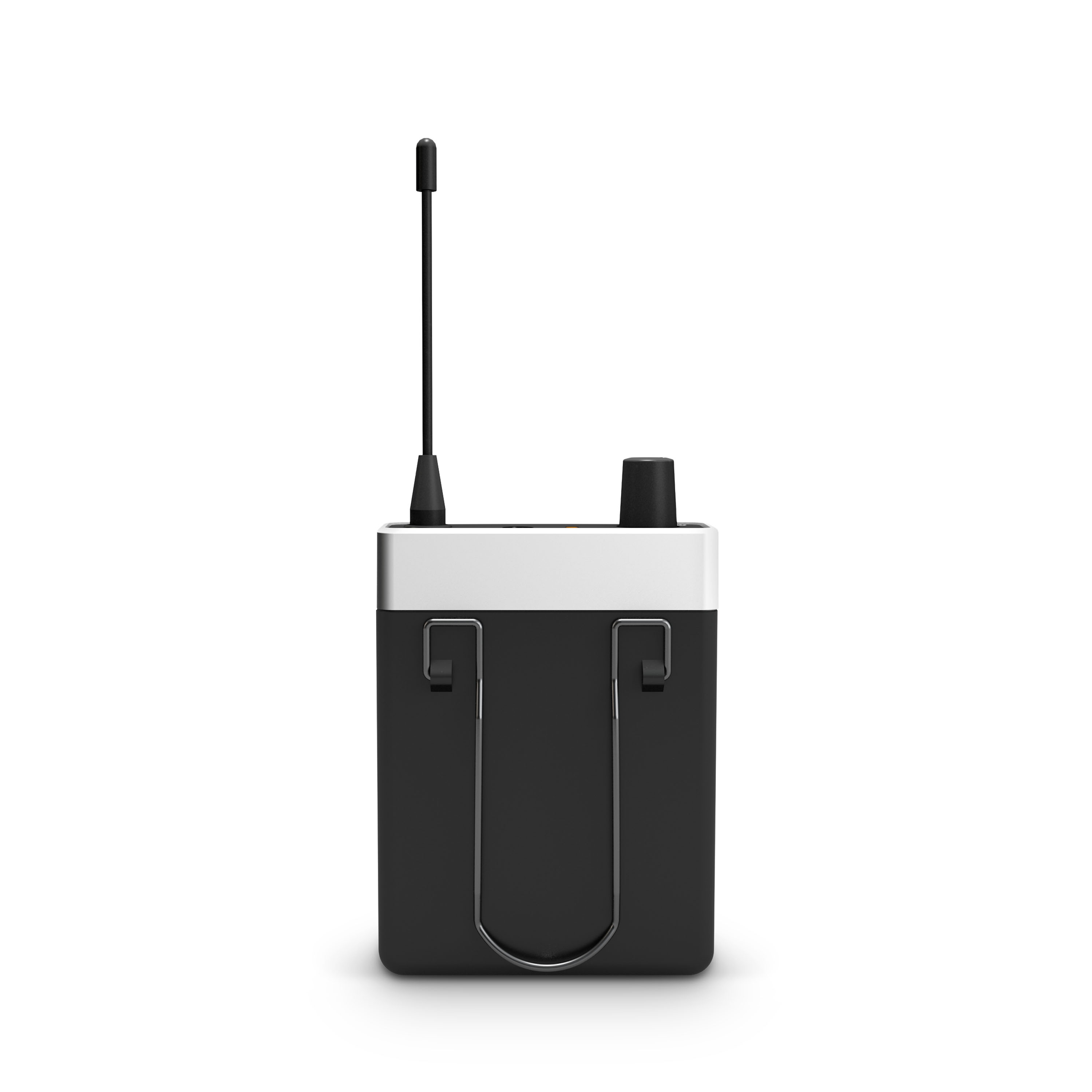

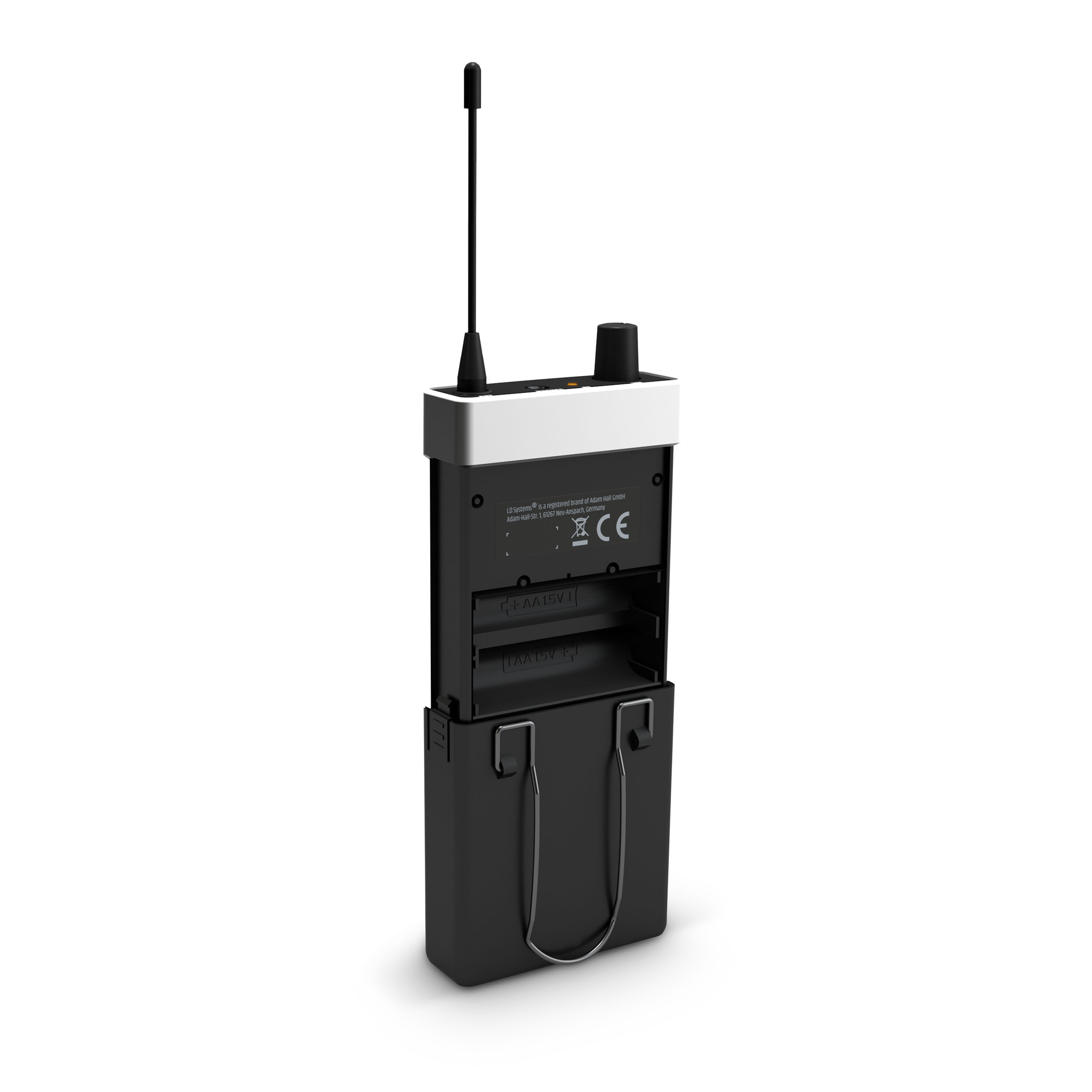

Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.

U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.

• Reliable in-ear monitoring with more than 100 m range
• 96 available channels
• 2, 10 or 30 mW ERP selectable transmission power
• Convenient infrared frequency syncing
• Individual user name assignment and memory for 10 custom presets
• Extended frequency response
• 3-band EQ with parametric mids
• Switchable limiter
• Stereo, focus and mono modes of operation
• High-contrast OLED display

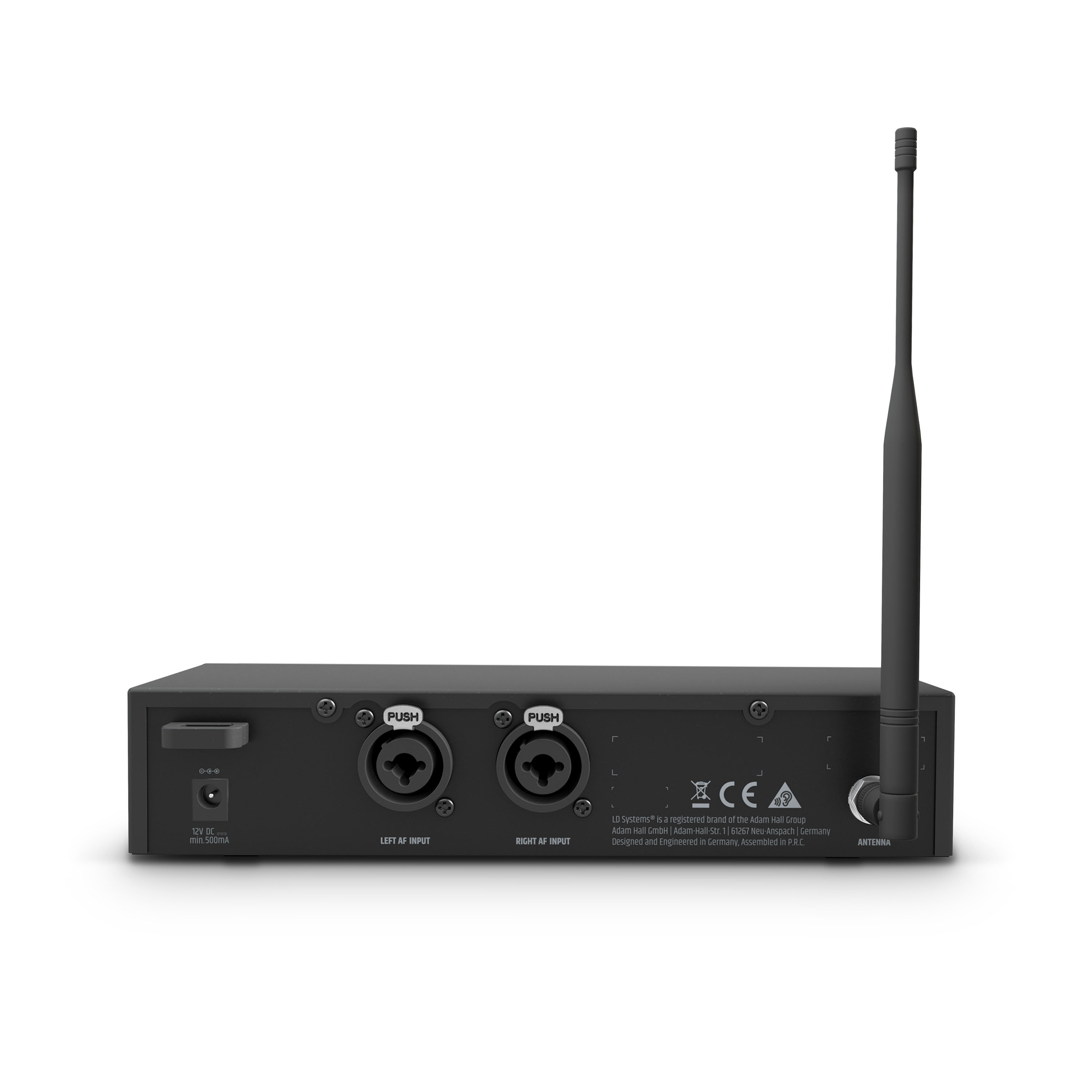

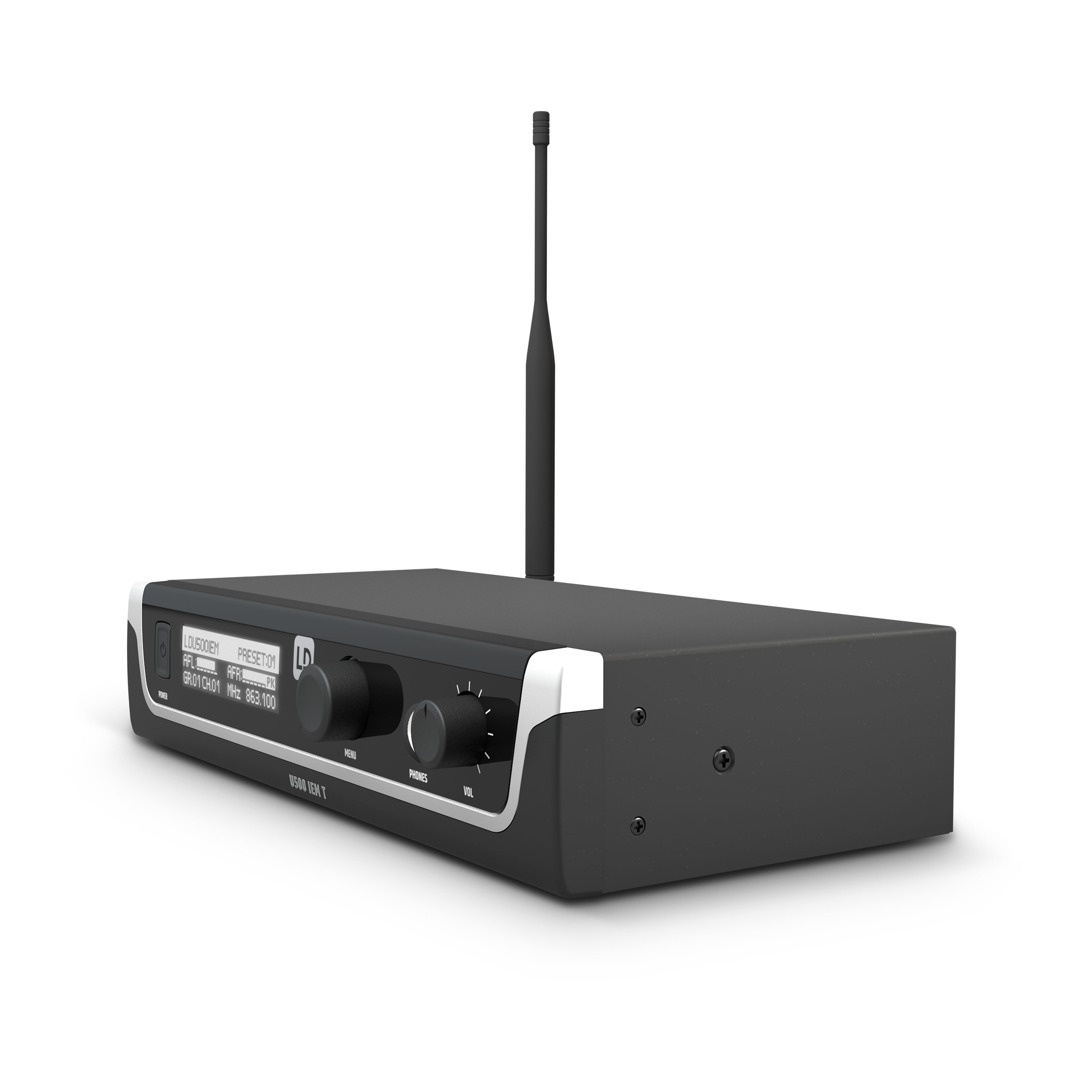

• Transmitter with direct monitoring headphone output
• Bodypack receiver with three selectable squelch levels
• 10 h of bodypack receiver operation on two AA batteries
• Simultaneous operation of up to 12 systems
• U500® IEM transmitter compatible with U300® IEM bodypacks

LDU505IEMR - U505 IEM R

LDU505IEMT - U505 IEM T
